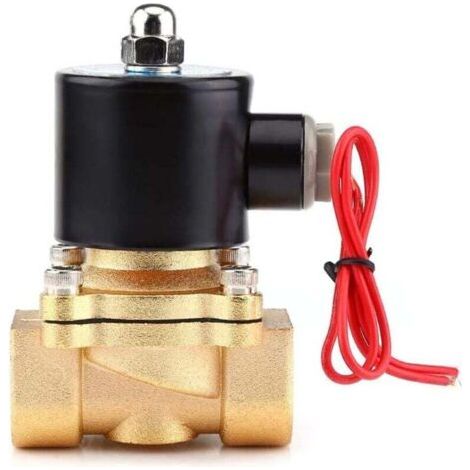

220v 1/2-zoll-magnetventil, Normal Geschlossenes Magnetventil Für Gas, Luft, Öl, Wasser

General Description This 220V solenoid valve (normally closed) is used to control the flow of gas, air, oil, and water. It is manufactured with a high-quality housing that can withstand pressures up to 0.7 MPa and high temperatures. Installation is recommended for indoor, horizontal, and dry environments. Technical Data Maximum Pressure: 0.7 MPa Internal Thread Diameter: 20 mm Flow Diameter: 16 mm Coil Power: 36 W Recommended Start-up Time: Less than 60 minutes Operating Environment Installation: Indoor, horizontal Conditions: Dry environment Protection: When used outdoors, protect the coil from water. Application Use with piping in non-corrosive applications Suitable for water, air, gas, and low-viscosity liquids. Further Information Dimensions are measured manually; A deviation of 1 to 3 cm is possible. Color variations may occur due to differences in lighting conditions and screen settings.
