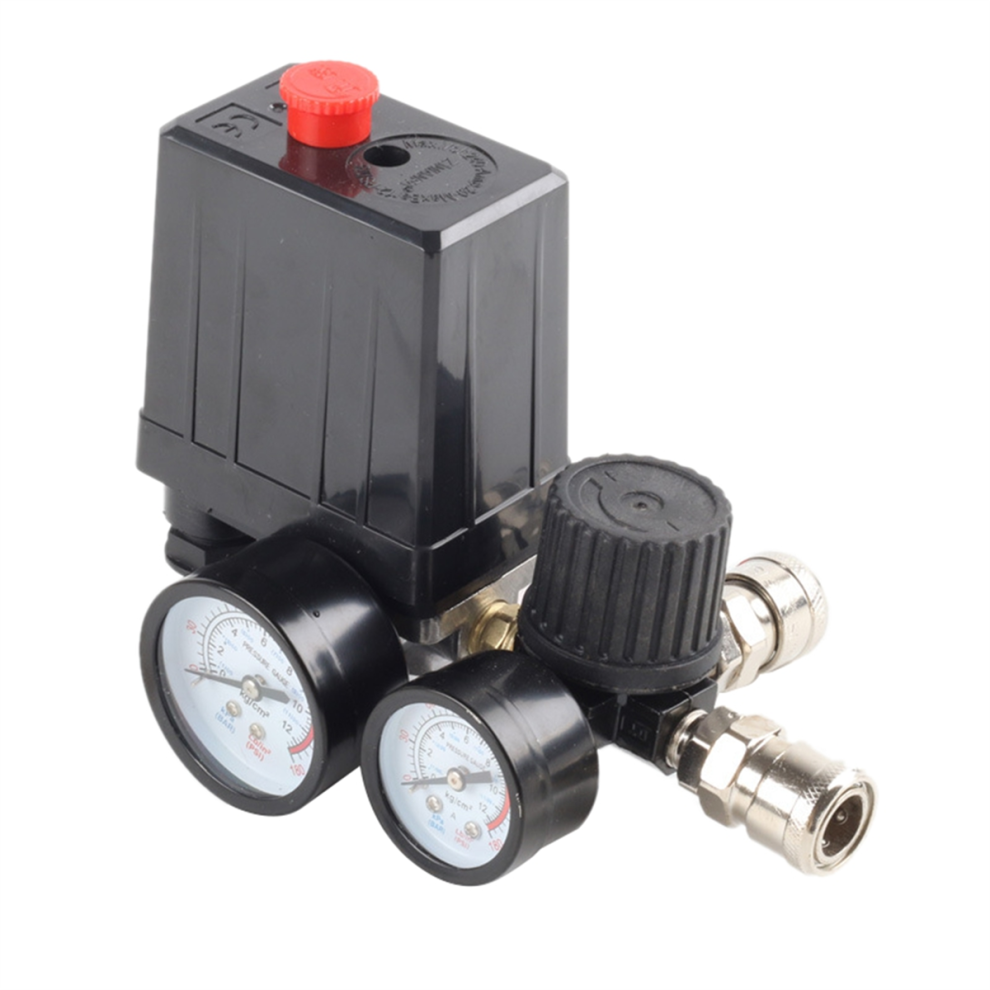

3000 L/min Luftpumpen-steuerventil, Manometer 0–180 Psi, 220 V/380 V

This control valve is suitable for 3000 L/min air pumps and is equipped with a 0-180 psi pressure gauge. It operates on 220V/380V. The piston features a V-seal for excellent sealing, high wear resistance, and stability. A pressure relief port on the valve body allows for quick and easy pressure release. The piston design allows for 30% higher flow rate than traditional diaphragm valves. It offers high pressure regulation accuracy and sensitive response. Switching pressure range: 0.5-0.8 MPa (5-8 bar) (90-120 psi). Rated voltage: 220/380V. Exhaust hose: 6mm. Fitting size: 12mm, 1/4 inch. Pressure relief port outer diameter: 9.5mm. Maximum current: 20A. Operating pressure: 5-8 kgf/cm². Service life: 80,000 cycles. Maximum flow rate: 3000 liters/minute; Working pressure range: 0.05-1.2 MPa; Color: Black; Material: Plastic; Package contents: 1 air pump control valve. Only the above contents are included; other products are not included. Note: Light reflection and different monitors may cause the color of the item in the picture to differ slightly from the actual product. Measurement tolerance is +/- 1-3 cm.
