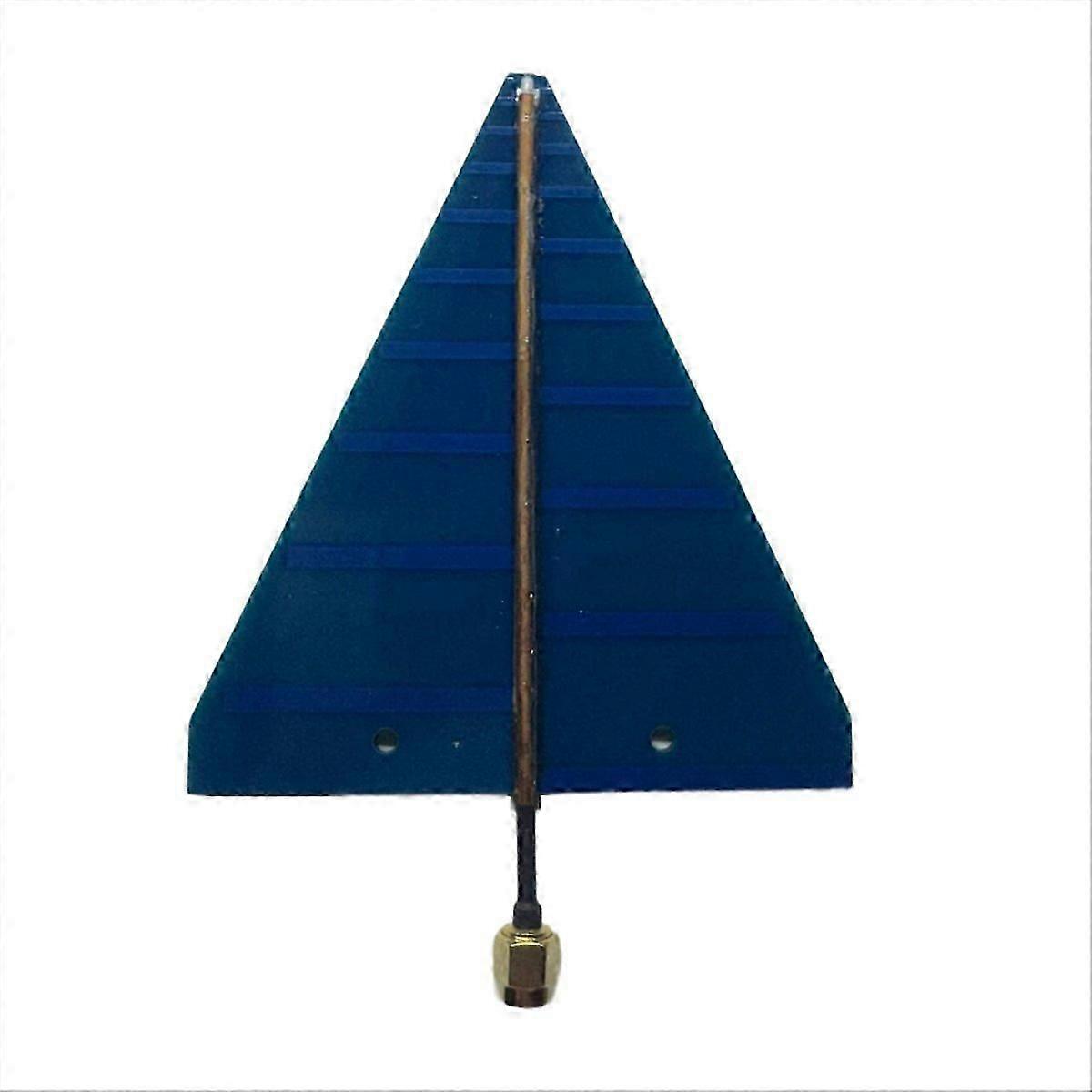

Antenne Uwb 1575 Mhz - 2,4 Ghz, Antenne Log-périodique 5,8 Ghz, Image Vidéo De Bonne Qualité

1.Logarithmic periodic antenna, broadband test antenna can be used for GPS, 2.4GHz, 5.8GHz, and other communications and for microwave darkroom testing. 2.This antenna is a broadband, high-gain logarithmic periodic antenna, which can also be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc. It can provide 6-9dBi directional gain in the frequency band of 1300MHz-10GHz. 3.1300MHz--10Ghz standing wave is less than 1.5, providing the continuous high field strength required for EMC testing, and is an ideal test antenna. Antenna bandwidth: 1300MHz-10GHz Impedance: 50 ohms Gain: 6±1dBi (typical value) Maximum power handling: 50W Standing wave ratio: VSWR Less than 1.5 (typical value) Connector type: SMA male Color: Blue Material: plastic Package Contents: 1 x Antenna Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
