DAMAKU

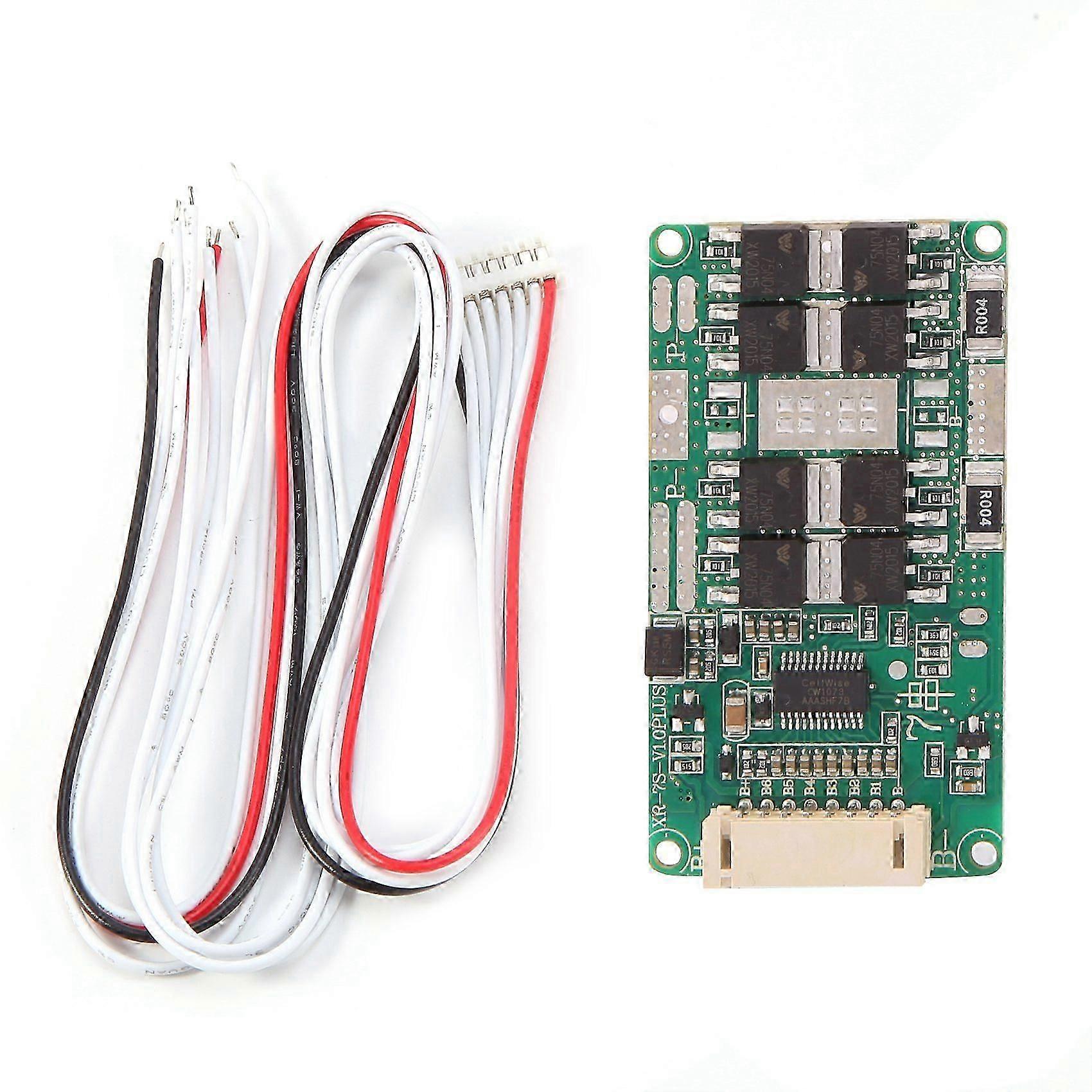

Carte De Protection De Charge Lithium Bms 7s 24v 18a, Circuit Imprimé Pcm, Port Commun Pour Outils Électriques/onduleur B Jg
EAN 5449511087707
40,47 €
ab 40,47 € inkl. Versand bei ManoMano DE
1 Händler1 AngeboteNeu
Affiliate-Links
Billigster Preis inkl. Versand
Angebot1 Angebot
Preise zuletzt geprüft: vor 5 Tagen
| Aktion | ||||
|---|---|---|---|---|
ManoMano DE | 40,47 € | Gratis | 40,47 € | Zum Shop |
| Type | 7S 24V Connection : Common Port Appearance size: 60x33x7MM Colour:As shown Material:PC+Metal Discharge Single battery over-discharge voltage: 2.7V±0.08V Continuous working current: 18A Instant protection current: 50A Overcurrent recovery conditions: charge recovery or disconnect load Short-circuit recovery conditions: charge recovery or disconnect load Charge Single battery overcharge voltage: 4.25V±0.025V Continuous charging current: 15A Charger voltage: 30V (recommended) Working power consumption: less than 30uA Main circuit conduction internal resistance: less than 20mohm Temperature range: -40 to 80℃ Wire protection: Yes Wire Length: 40cm Package Contents: 1 x BMS 7S 24V 18A - Lithium Protection Board(Due to different product batches, the appearance may be different, the function is the same) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. |
