DAMAKU

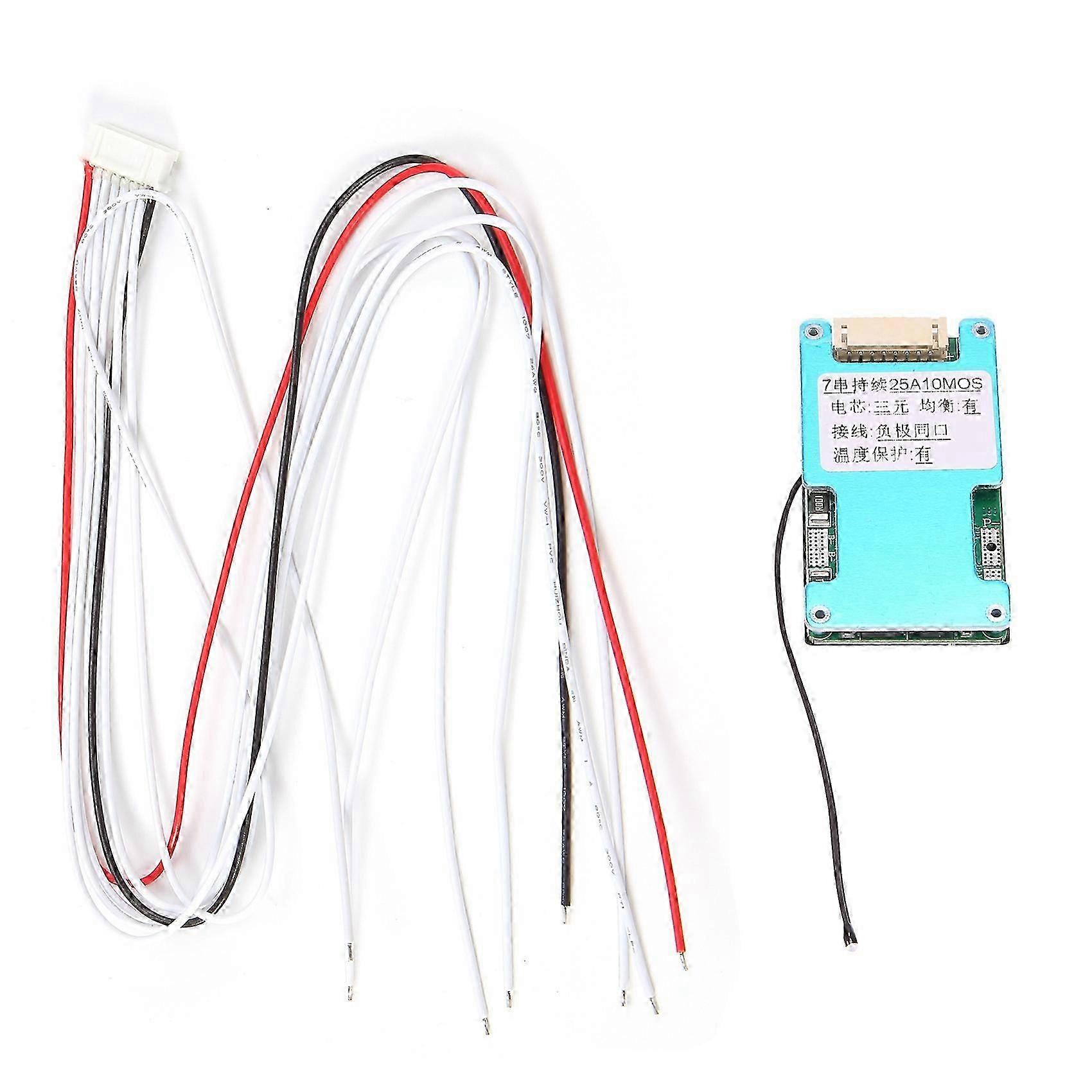

Carte De Protection Pour Batterie Lithium Bms 7s 24v 18650, Équilibreur Bms, Chargeur De Batterie Externe Pour Moto Et Scooter (25a) Kns
EAN 5449511087752
44,37 €
ab 44,37 € inkl. Versand bei ManoMano DE
1 Händler1 AngeboteNeu
Affiliate-Links
Billigster Preis inkl. Versand
Angebot1 Angebot
Preise zuletzt geprüft: vor 7 Tagen
| Aktion | ||||
|---|---|---|---|---|
ManoMano DE | 44,37 € | Gratis | 44,37 € | Zum Shop |
| Discharge | Single battery over-discharge voltage: 2.7V±0.08V Continuous working current: 25A Instant protection current: 60A Overcurrent recovery conditions: charge recovery or disconnect load Short-circuit recovery conditions: charge recovery or disconnect load Charge Single battery overcharge voltage: 4.25V±0.025V Continuous charging current: 20A Charge equalization voltage: 4.15V±0.025V Charge equalization current:40mA Charger voltage: 30V (recommended) Charging over temperature protection: 50℃ Discharge over temperature protection: 70℃ Working power consumption: ≤30uA Main circuit conduction internal resistance: ≤20mΩ Temperature range: -40 to 80℃ Wire break protection: Yes Wire Length: 40cm Appearance size: 60 x 33 x 7MM Connection method: Common Port Due to different product batches, the appearance may be different, but the function is the same color:As shown Material:PC+Metal Package Contents: 1 x BMS 7S 24V Lithium Battery Protection Board(25A) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. |
