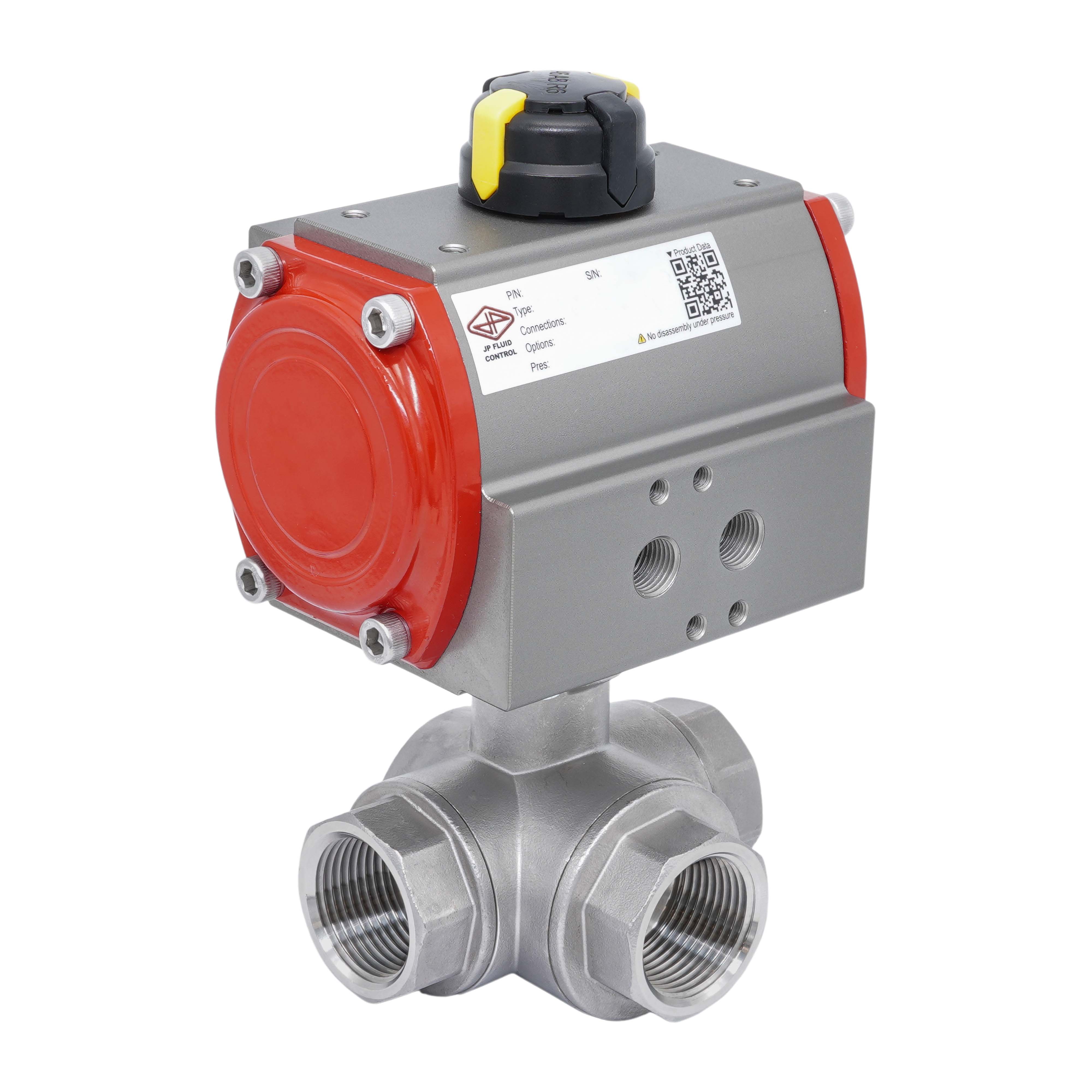

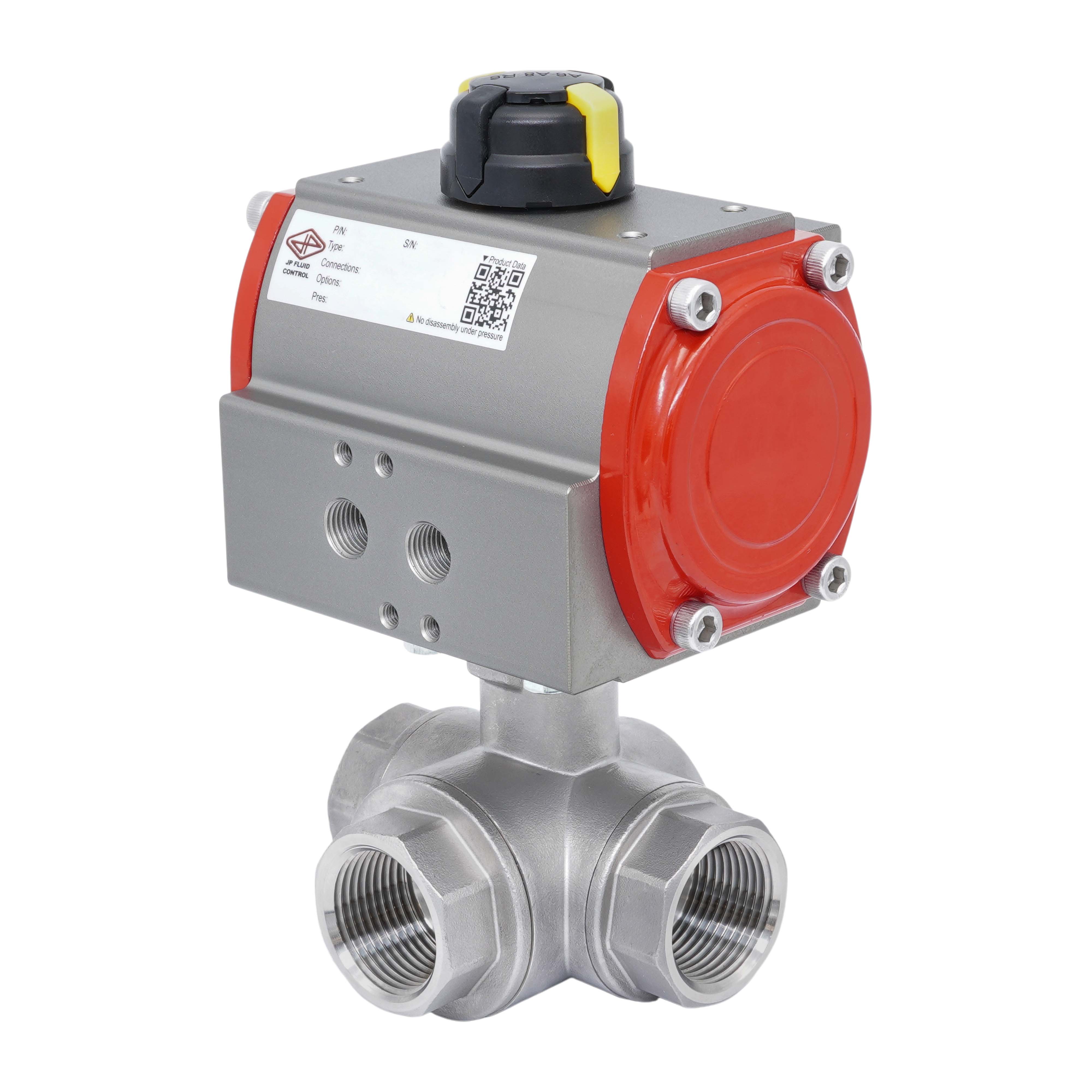

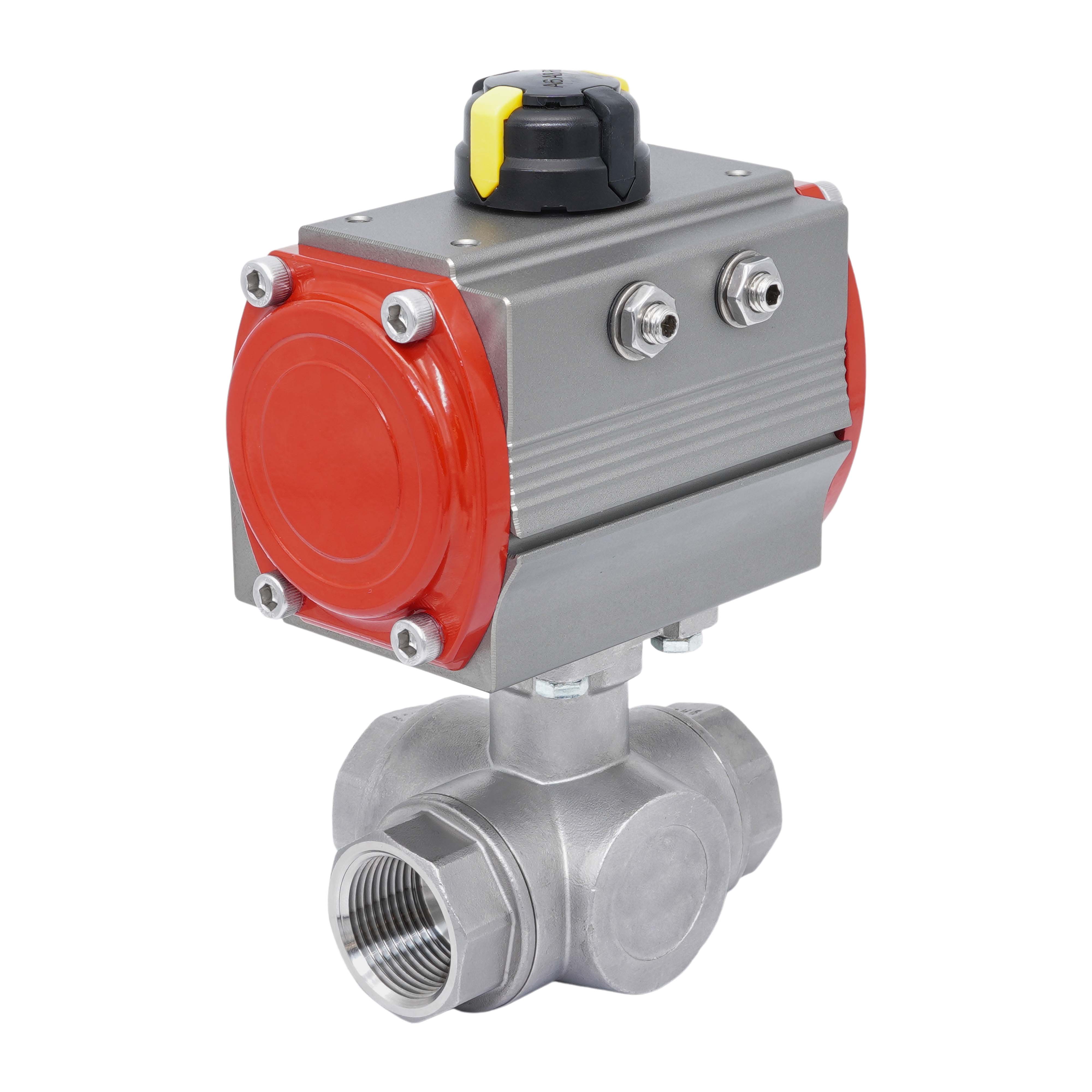

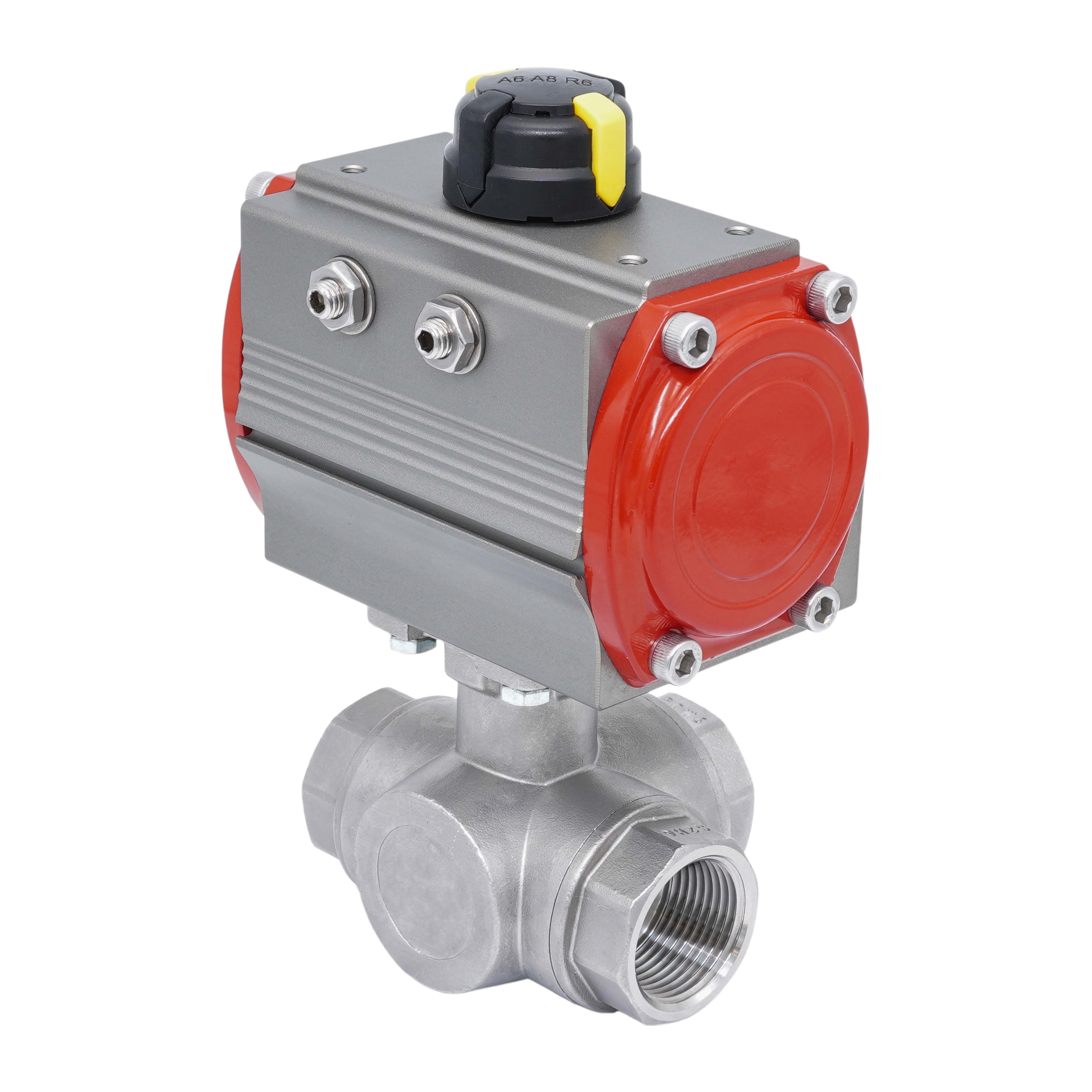

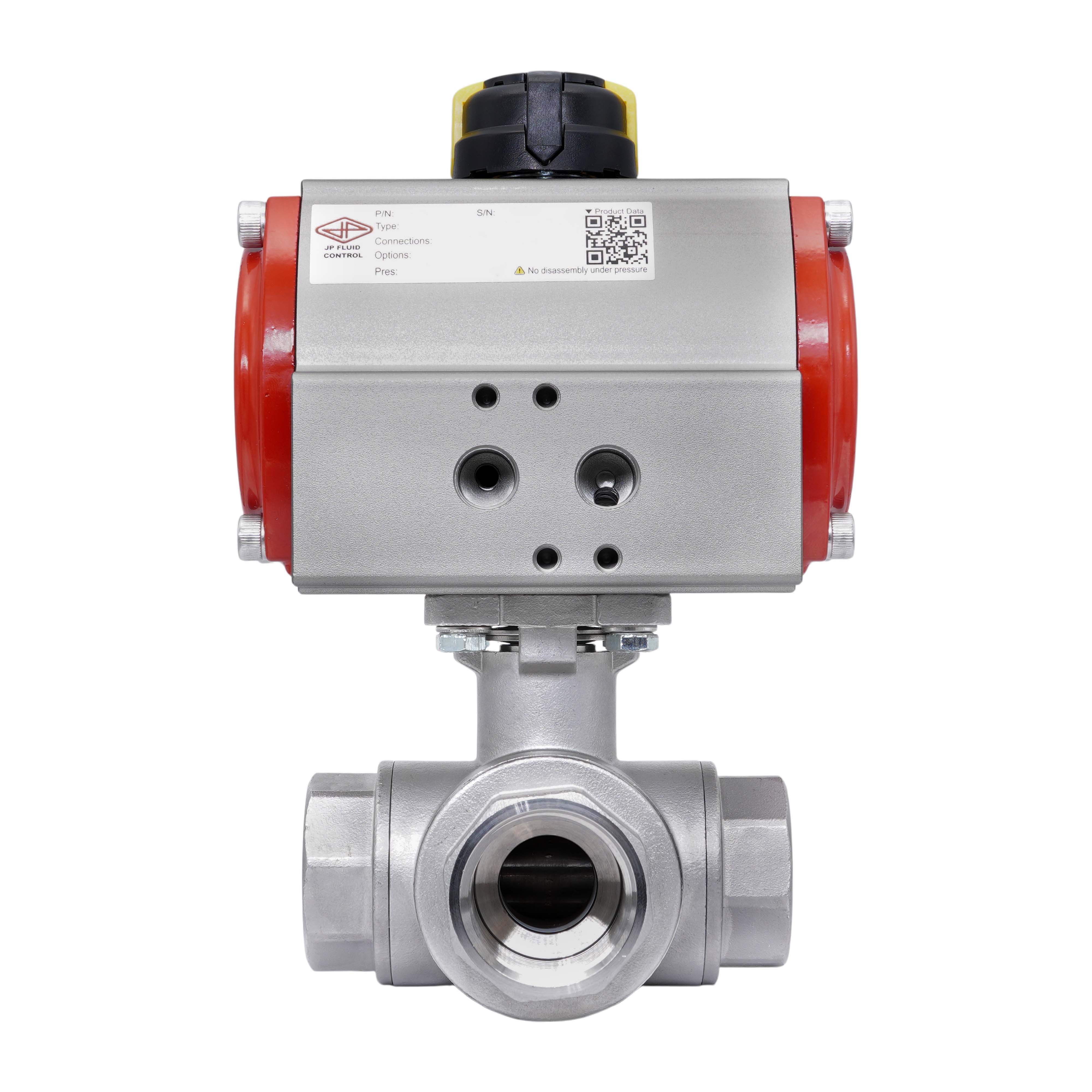

G 3/4'' L-Port 3-Way Pneumatic Stainless Steel Ball Valve Spring-Closed

This 3-way ball valve is pneumatically actuated, featuring a 16 mm bore size and G 3/4 inch BSPP female threaded connections. It is suitable for medium temperatures from -29°C to 150°C (-20°F up to 302°F). The valve can handle pressures of up to 69 bar at 20°C (1000 psi at 68°F). The valve body and the ball are made of stainless steel 1.4408 with a PTFE seal, making it suitable for various aggressive and corrosive media. The Kv value is 6.8 m3/h (Cv = 7.9 gpm). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.The actuator features a robust, spring-closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. The pneumatic input range is from 3 to 8 bar (43 to 116 psi). It is suitable for ambient temperature from -20°C to 80°C (-4°F to 176°F). Additionally, it features a Namur 1/4 inch interface for solenoid valves and a 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes.
