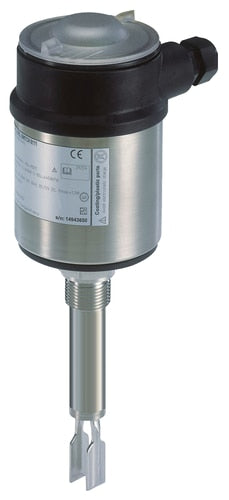

G 3/4 Vibrating Fork Level Switch Stainless steel - 8112 - 565033

This vibrating fork level switch (Type 8112) detects the presence of liquid at a single point in a tank or vessel, used for overflow protection and dry-run prevention of pumps. The sensor is virtually unaffected by the chemical and physical properties of the liquid. The stainless steel sensor and process connection are suitable for a wide range of liquids, including aggressive and corrosive media. This variant has a G 3/4 process connection. Fork rod length: 150 mm. Rated for -50 °C to 150 °C and up to 64 bar. IP66/67 protection. ATEX certified (II 1/2 G EEx ia IIC T6) for use in explosive atmospheres.
