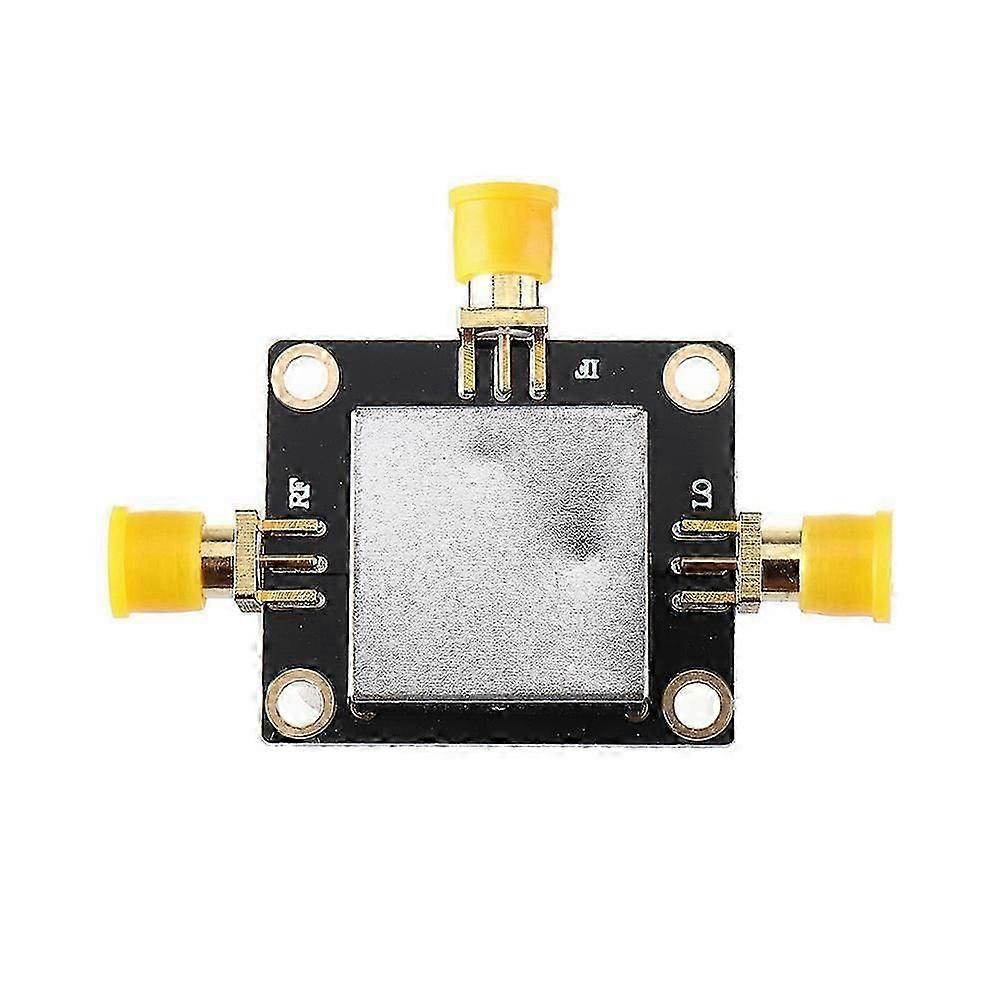

Module Mélangeur Passif Hmc412 9-15g À Double Équilibrage Et Faible Bruit, Conversion De Fréquence Rf Ascendante Et Descendante Kns

Passive double balanced mixer in an 8-pin surface mount plastic package (MsOP). The passive MMiC mixer uses a GaAs Schottky diode and a novel planar transformer on-chip balun structure. This type of device can be used as an upconverter, downconverter, biphase modulator and demodulator or phase comparator. Module features: DIY Supplies:ELECTRICAL Type:Passive mixer module Conversion Loss: 8 dB LO to RF Isolation: 25 dB LO to IF Isolation: 25dB Frequency Range, RF & LO: 9-15G Frequency Range, IF: DC-2.5G Noise Figure (SSB): 8dB 1 dB Gain Compression (Input): 9.5dBm IP3 (Input): 17dBm ParameterIF: 1.45 GHz LO: +13dBmUnits Min.Typ.Max. Frequency range, RF&LO9.0-15.0GHz Frequency range, IFDC-2.5GHz Conversion Loss: 811dB Noise Figure(SSB): 811dB LO to RF Isolation: 3040-50 dB LO to IF Isolation: 3340-50 dB RF to IF Isolation: 817 dB IP3 (Input): 1417 dBm 1dB Compression (Input): 79.5 dBm RF/IF Input (Vdd: +3V)+27dBm LO Drive (Vdd: +3V)+27dBm IF DC Current+-4mA Storage Temperature: -65℃ to +150℃ Operating Temperature: -55℃ to +85℃ colour: as shown Material: plastic Package Contents: 1 x Low Noise Double Balanced Mixer Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
