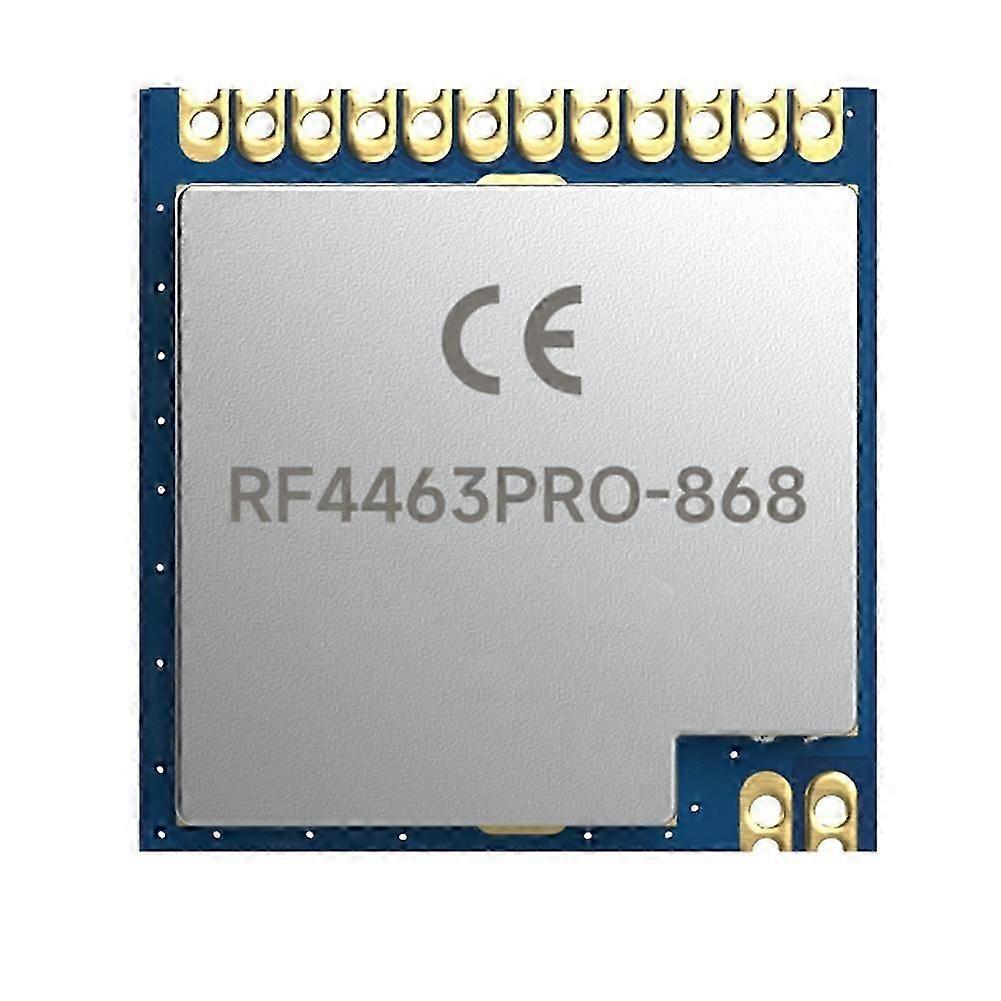

Module Sans Fil Rf4463 Pro Si4463 : Module De Communication Pour Maisons Intelligentes, Télécommandes Et Jouets (qaq)

The RF4463PRO module uses the Silicon Labs Si4463 device, a highly integrated wireless ISM band transceiver chip. Its extremely low receive sensitivity (-126dBm), coupled with industry-leading +20dBm output power, ensures extended range and improved link performance. Meanwhile, built-in antenna versatility and frequency hopping support can be used to further extend range and improve performance. Sensitivity up to -126dBm Maximum output power: 20dBm 10mA@receive status Data transmission rate: 0.1-1000kbps (G)FSK, 4(G)FSK, (G)MSK, OOK and ASK1 modulation modes Ultra-low power-off mode Digital Received Signal Strength Indicator (RSSI) Timed wake-up function Automatic antenna matching and bidirectional switch control Configurable packet structure Preamble detection 64/128-byte transmit/receive data register (FIFO) Low power detection Temperature sensor and 8-bit analog-to-digital converter Integrated voltage regulator Frequency hopping function Power-on reset function Built-in crystal adjustment function 1.8-3.6 V power supply Operating temperature range: -40-+85℃ Applications: Remote control Remote meter reading Industrial control Home automation telemetry Toy control Wireless PC peripherals Tag reader/writer. Specification:868Mhz Color:As Shown Material:PCB Package Contents: 1 * Wireless Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
