OLOEY

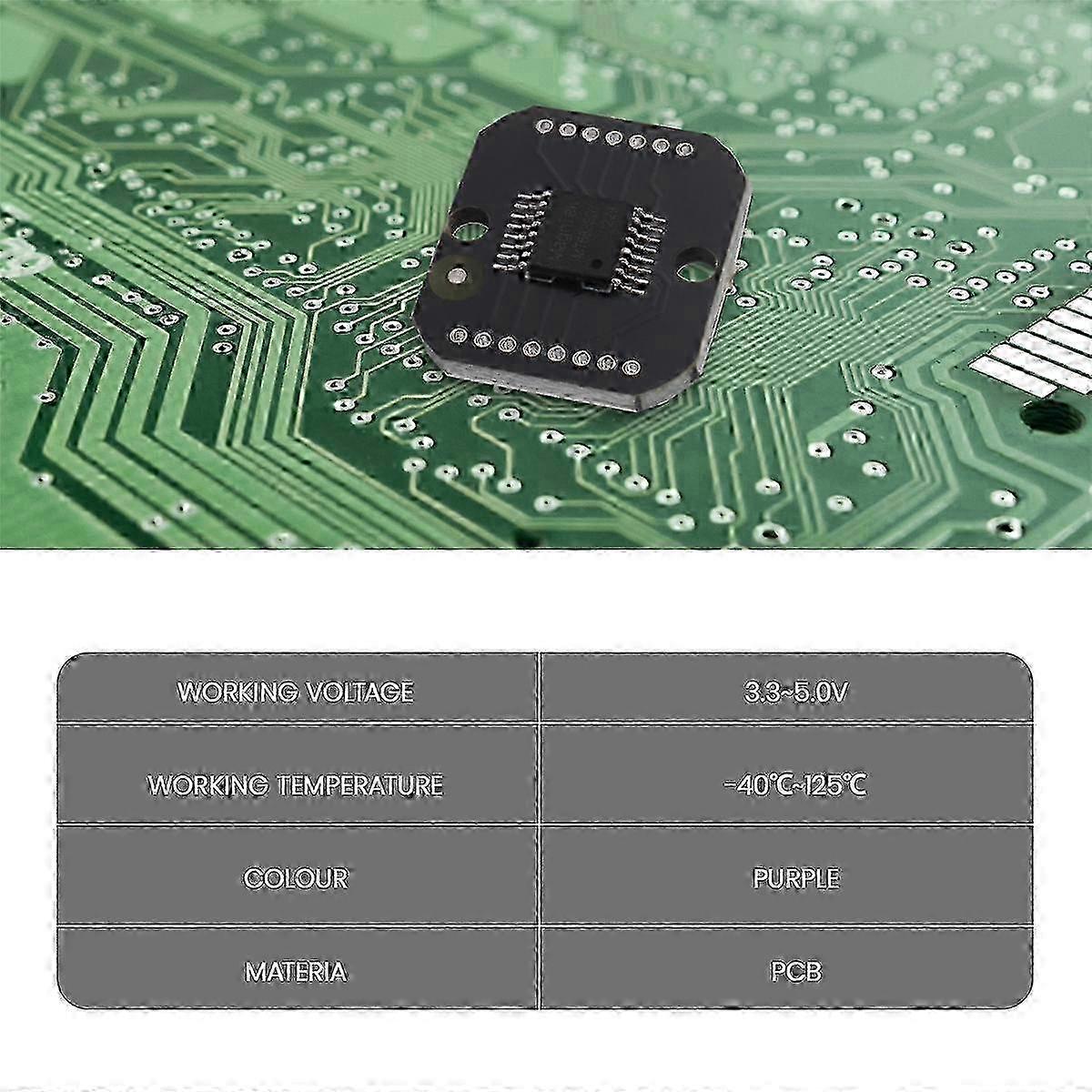

Mt6835 Magnet-encoder-modul Pwm/spi Bürstenloser Motor 21-bit-encoder Kann As5048 Edition 0703 Edition 0724 Ersetzen
EAN 2846900523595
24,54 €
ab 24,54 € inkl. Versand bei ManoMano DE
1 Händler1 AngeboteNeu
Affiliate-Links
Billigster Preis inkl. Versand
Angebot1 Angebot
Preise zuletzt geprüft: vor 6 Tagen
| Aktion | ||||
|---|---|---|---|---|
ManoMano DE | 24,54 € | Gratis | 24,54 € | Zum Shop |
| Usage Tips | Usage Tips:Based on AMR technology, it provides absolute angle measurement from 0° to 360° Working voltage 3.3~5.0V Working temperature -40℃~125℃ Typical value of linearity deviation Less than ±0.5° (factory value), typical value of linearity deviation Less than ±0.07° (typical value self-calibration), typical value of linearity deviation Less than ±0.02° (typical NLC self-calibration) The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip Incremental output ABZ supports any resolution from 1 to 16384 lines Incremental output UVW supports 1~16 arbitrary pole pairs Support up to 5 times online zero programming The output is SPI Colour:Purple Material:PCB Package Contents: 1 x Magnetic encoder 1 x Magnet Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. |
