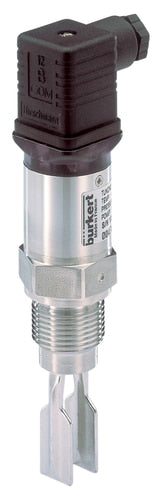

NPT 3/4 Vibrating Fork Level Switch Stainless steel - 8110 - 562160

This vibrating fork level switch (Type 8110) detects the presence of liquid at a single point in a tank or vessel, used for overflow protection and dry-run prevention of pumps. The sensor is virtually unaffected by the chemical and physical properties of the liquid. The stainless steel sensor and process connection are suitable for a wide range of liquids, including aggressive and corrosive media. This variant has a NPT 3/4 process connection and a Plug pattern form A according to DIN EN 175301-803 electrical connection. Rated for -40 °C to 100 °C and up to 64 bar. IP65 protection.
