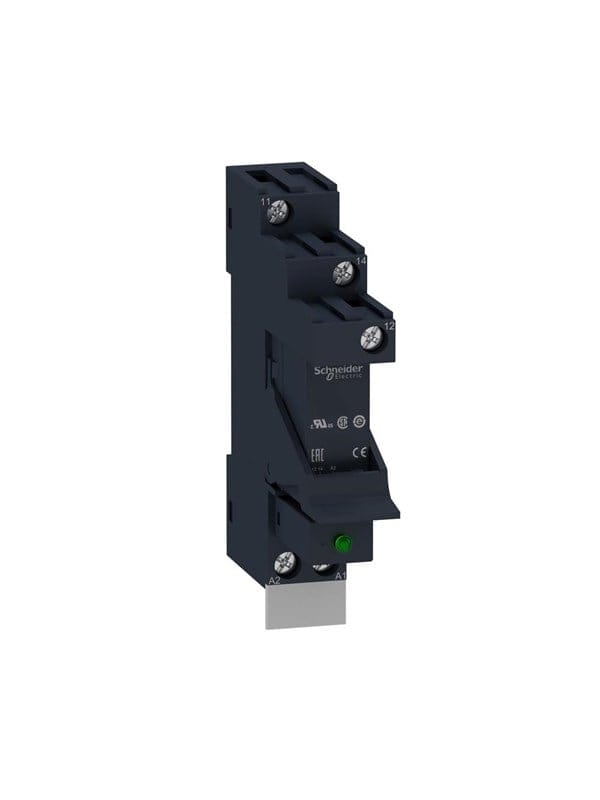

RSB1A120BDPV - Interface-Relais Zelio, 1 CO, 24 V DC , 12 A

Zelio RSB are a series of compact plug-in relays with a width of only 16 mm.The relays are available with 1 C/O with either 12 and 16A or 2 C/O contacts with 8A maximum load.It is possible to insert a protection module (diode, varistor or RC-circuit) into the relay socket if needed.The sockets RSZE1S35M and RSZE1S48M has separate terminals for supply and load which simplify troubleshooting and mounting of the relays.RSB1A120BDPV is a complete plug-in relay mounted into a RSZE1S35M socket with a maintaining clamp, which secure that the relay stays in the socket even in an environment with vibrations.The socket has a blocking diode for protection against reversed polarity.The diode module has also a build-in LED for indication of supply to the relay.RSB1A120BDPV has a 1 C/O AgNI contact with a maximum load of 12A.The relay has a lifetime of 100.000 cycles (depending on load).Supply voltage to the RSB1A120BDPV is 24 VDC and average coil consumption is 0,45W.Minimum switching c
