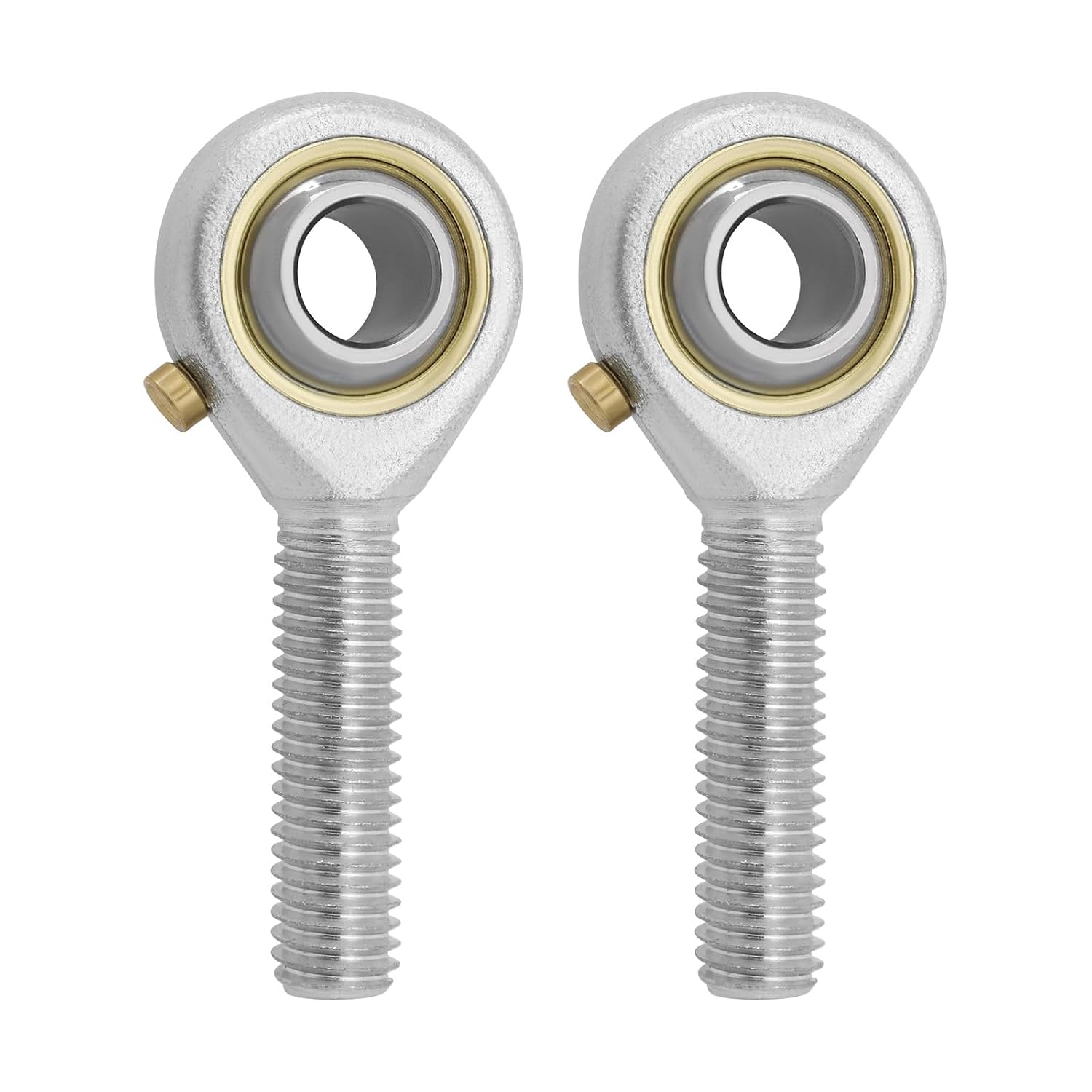

Zwei M8x1,25 Kugelgelenke Mit Rosa Dichtungen, Pos8 Linksgewindeanschluss.

The M8 left-hand threaded rod end bearing has a total length of 53 mm, a ball head width of 21.6 mm, a ball head thickness of 12 mm, and a ball head inner diameter of 8 mm. The thread specification is M8x1.25, with a thread length of approximately 29 mm. M8 left-hand threaded external shaft bearings are widely used in engineering hydraulic cylinders, forging machines, power tools, automation equipment, trucks, tractors, ships, and industrial machinery. This rod end bearing is made of carbon steel, has a long service life, and features a chrome-plated inner ring and a galvanized rod end body surface to improve corrosion and wear resistance. Our fitting is a Heim threaded fitting, consisting of a housing, a spherical pivot, and a threaded shaft. The spherical bushing allows for a certain degree of misalignment of the rod or bolt passing through it. This rod end bearing features good self-lubricating properties, low noise, corrosion resistance, toughness, and durability.
